DW-2 Primary Switchgear - Air Insulated and Metal-Clad

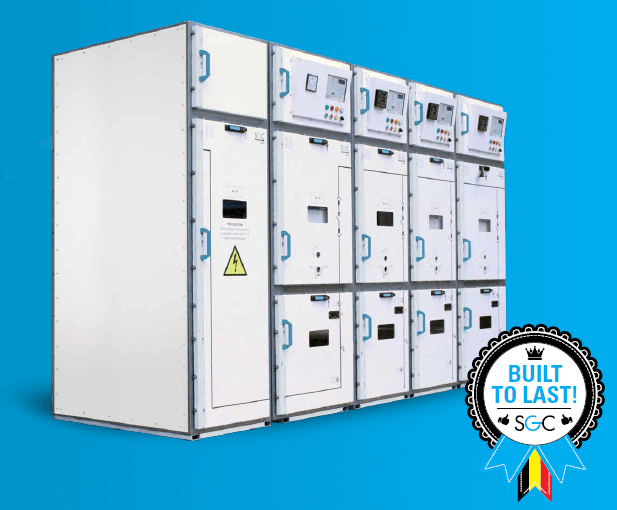

SGC Withdrawable

Cubicles consist of 2 mm galvanized steel plates. By opting for this particular plate size, the cubicles are able to withstand internal arcs effortlessly, both in the cable compartment as well as in the busbar compartment. A lot of detail went into the functional design to ensure that, in the event of an internal malfunction, no bursts of flames can move between plating surfaces, the door or between cubicles. Possible internal arcs are also guaranteed to be restricted to the compartment where they originated. The roof of the cubicle can be easily dismantled to provide smooth access to the busbar during installation and/or maintenance activities.

Technical Specifications Values
Rated Voltage
12kV
Rated power frequency withstand voltage (Ud)
28kV
Rated lightning impulse withstand voltage (peak)
75kV
Rated short-circuit breaking current (lsc)
to 31.5kA
Rated peak withstand current (lp)
to 82kA
Rated short-time withstand current (lk)
to 31.5kA
Rated duration of short circuit current (tk)
4s
Internal arc withstand current, 1s
31.5kA
Rated frequency
50/60Hz
Rated busbar current
2500A
Rated feeder current
630A, 1250A, 1600A, 2000A
Standards
IEC 62271-200
Degree of protection (RC 630A, 1250A)
IP4X
Degree of protection (RC 1600A, 2000A)
IP3X
Temperature range
-25...+40°C
Maximum relative humidity
95%
Maximum altitude
1000m a.s.l.*
